SUGAWARA Measurement of
The Impact Torque
-
Impact Torque Measurement
The product is capable of measuring impulse torque, traditionally a challenging task.

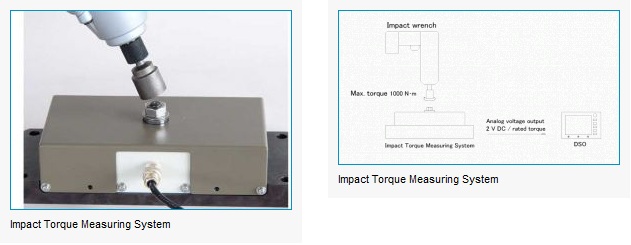

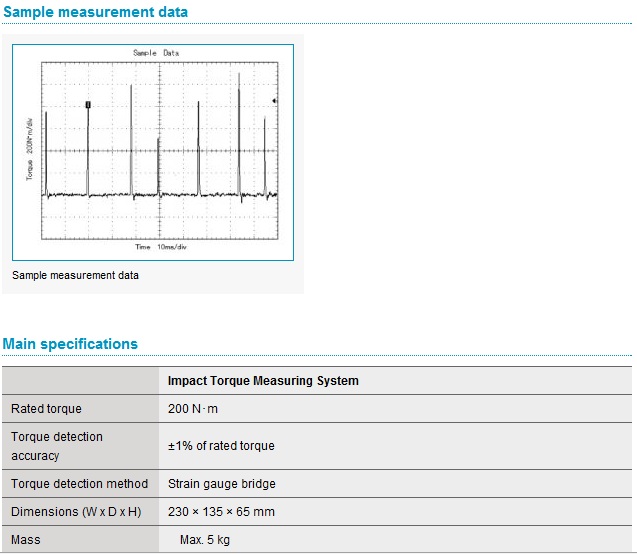

The system performs measurements by pressing the socket of an impact wrench or other tool directly to the nut-shaped attachment fitted to the sensor. Measurement results, including the torque waveform and maximum torque, can be read from a digital oscilloscope. The torque is detected by a torque converter developed by Sugawara. In addition to measuring impact torque, the Impact Torque Measuring System can be used to calibrate the static torque of various tools including torque wrenches.
