SUGAWARA Stroboscopes for Machine Vision

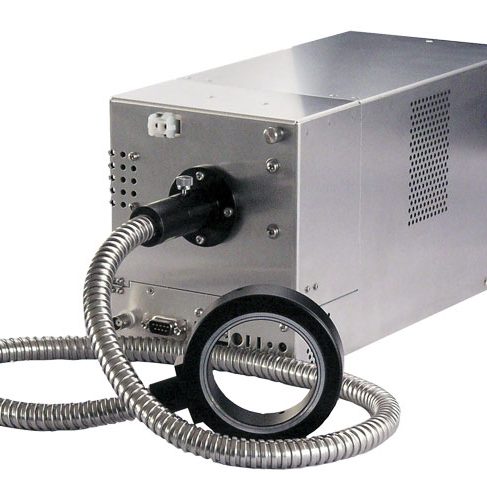

• Optical-fiber type strobe light source: 80 W High-intensity model MS-G8010



  Main features

  • High intensity (80 W continuous)
  • Low flicker at high-frequency flashing
  • Long life： 5×108 flashes
  • No light beam adjustments required after lamp replacement
  • Wide spectral range from ultraviolet to infrared
  • Flashes synchronized with camera using external trigger
  • Intensity can be controlled externally (analog/digital)
  • Compact size

  Applications

  • Automated optical inspection (AOI) requiring high speed flashing
  • Automated optical inspection (AOI) requiring high intensity flashing





• Optical-fiber type strobe light source MS-G15S

  Stroboscope with integrated 15-W single flashlamp and strobodriver



  Main features

  • Enables remote illumination from the light source and power supply when combined with a fiber bundle.
  • Flashing frequency of up to 120 Hz.
  • Dial for adjusting light intensity over a better than two-fold range.
  • Affordably priced:¥128,000. (Domestic Price in Japan)

  0

  .

• Optical-fiber type strobe light source MS-G15W

Stroboscope with integrated dual 15-W flashlamps and strobodriver capable of illumination at different rates

Main features

• Enables remote illumination from the light source and power supply when combined with a fiber bundle.
• Flashing frequency of up to 120 Hz.
• Dial for adjusting light intensity over a better than two-fold range.
• Affordably priced: ¥255,000. (Domestic Price in Japan)

• Optical-fiber type strobe light source MS-GR15

  Stroboscope with integrated 15-W flashlamp and strobodriver enabling light-intensity control for each strobe flash,triggered by external signals



  Main features

  • Permits control of light intensity over the range from 25% to 100% by transmitting 8-bit parallel signals.
  • Enables remote illumination from the light source and power supply when combined with a fiber bundle.
  • Flashing frequency of up to 60 Hz.
  • Affordably priced: ¥212,000. (Domestic Price in Japan)

  .

  .

• Strobe for license plate recognition: Near infrared illumination stroboscope ESS-5315 Series

  Allows video recording of vehicle numbers undetected by the human eye.



Main features

• The ESS-5315 Series stroboscope incorporates a near infrared light source with a wavelength of 780 nm or longer.
• It is capable of illumination and video recording undetected by the human eye.
• ESS-5315-1 illuminates the area of 3.5 m×2.3 m at a distance of 6m, and ESS-5315-2 illuminates the same area at a distance of 20m.
• The illumination wavelength can be modified by replacing the filter to suit the intended requirements.
• It is capable of emitting 8 successive flashes at 0.5 s intervals, making it ideal for continuous recording of passing vehicles.
