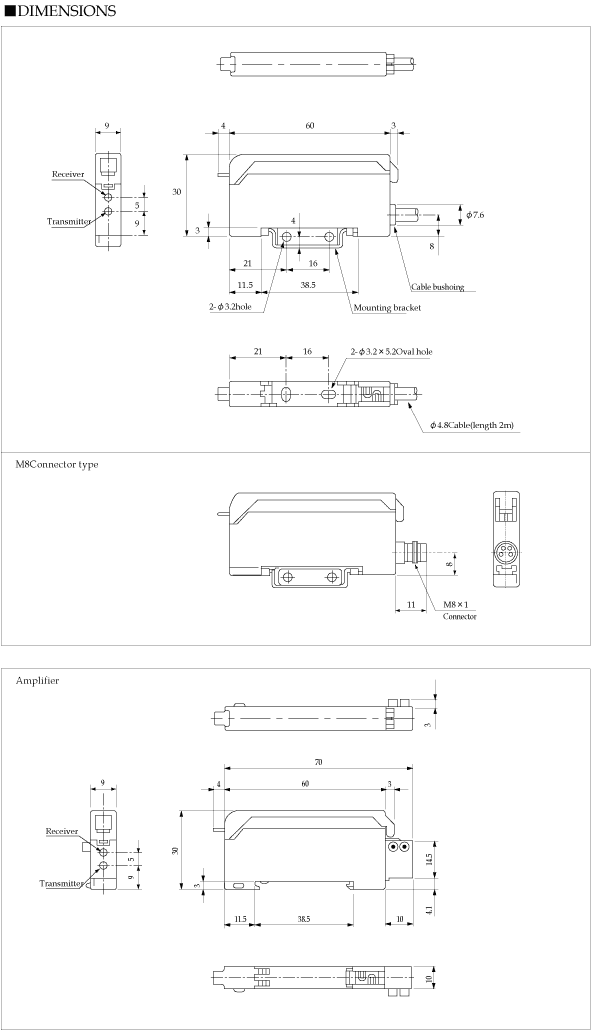

Model |
NPN type |
F70R
|
F70G
|
F70B
|
PNP type |
F70RPN
|
F70GPN
|
F70BPN
|
Detection |
Through beam/Refrection(by fiver unit)
|
Range |
|
Power supply |
12-24VDC ±10% Ripple 10% or less
|
Current consumpion |
NPN type : 39mA or less PNP type : 50mA or less
|

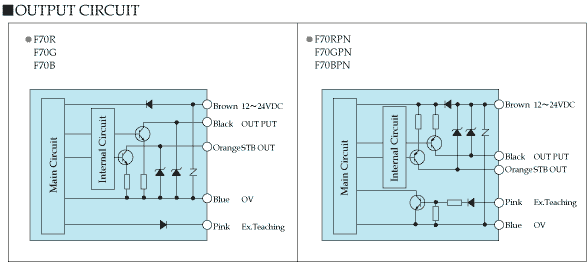

Out
mode |
Output |
|
NPN : Rated : Sink current 100mA(30VDC) Max.Residual voltage : 1V or less
PNP : Rated : Source current 100mA(30VDC) Max.Residual voltage : 2V or less
|
Stability
Output |
|
NPN : Rated : Sink current 50mA(30VDC) Max.Residual voltage : 1V or less
PNP : Rated : Source current 50mA(30VDC) Max.Residual voltage : 2V or less
|
Oparation mode |
Light-On/Dark-On selectable
|
Timer |
On delay/Off delay/On-Off delay/non-delay selectable
Timer time : 10/20/40/60/80/100/120ms. selectable 40ms.set at factory
|
External teaching input |
Non voltage(contact/non-contact)
|
Response time |
Transmission frequency Channel 1: 500µs. or less
Channel 2: 600µs. or less
|
Light source
(wave length) |
|
|
|
Indicator |
Oparation indicator : Orange LED , Stability indicator : Green LED
|
Display |
|
Switch |
Setting button : 2 Oparation changeover switch : RUN/SELECT/MODE
|
Teaching system |
Full auto teaching/Auto teaching
|
Teaching input |
Setting buton/External input
|
Features |
·Sensor feature : Auto sensing/Teaching/Locking
·Accessory feature :
S-Manual setting for sensitivity/ON-operation level
H-Manual setting for hysteresis
V-Light variation indication mode/Absolute value indication mode
·Interference protection built-in
·Self-diagnostic built-in
·Short curcuit protection built-in
|
Material |
|
Wiring |
Cable(outer dimension : dia.4.8) 0.2sq. 5core 2m length
|
Weight |
Approx.80g(including mounting bracket)
|
Ambient illumination |
Incandescent lamp : 10,000lx or less Sun light : 20,000lx or less
|
Ambient temperature |
-25~+55°(storage : -40~+70°C)
in case of installed some pieces closely, 1-4pcs : -25~+55°C 5pcs or more : -25~+45°C
|
LCD Display Fiber optic sensor sensitivity
status is visible
