Slim Type Fiber Optic Sensor F2R

Full Description

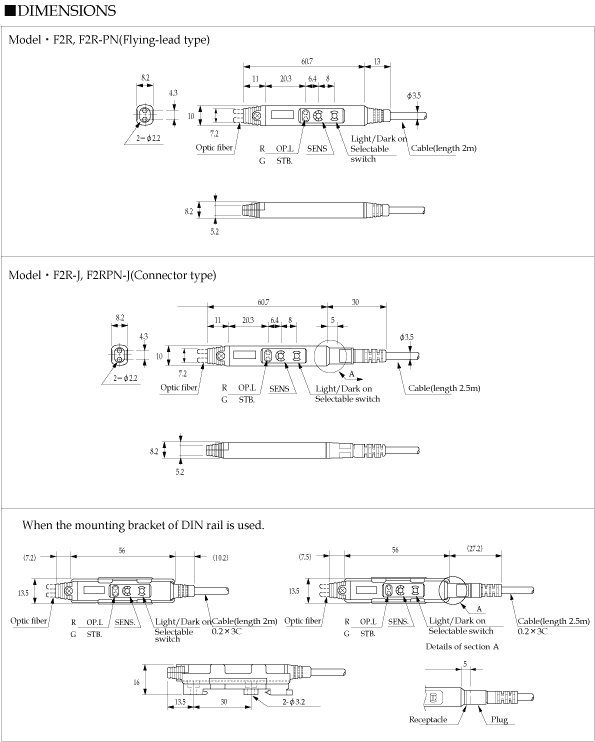

	Amazingly slim (External dimensions 8mm×10mm.length 73mm)
	The Amplifier can be used as if it were cable
	2 output types : NPN or PNP
	Fast response time(500µs max.)

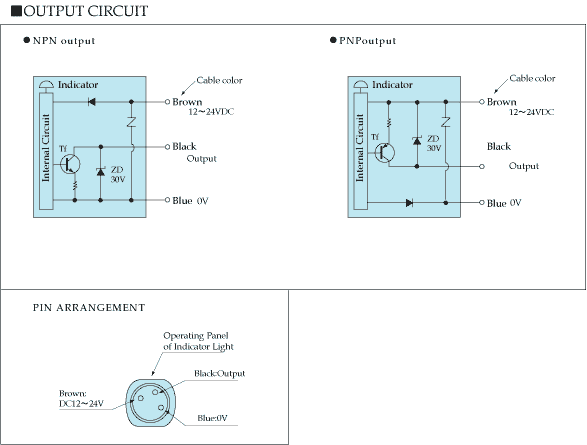

NPN OUTPUT TYPE

PNP OUTPUT TYPE

Model

F2R

F2R-J

F2RPN

F2RPN-J

Detection

Through beam/Refrection(By fiver unit)

Range

It depends on Fiber unit

Power supply

12-24VDC ±10% Ripple 10% (Max.)

Current consumpion

25mA(Max.)

30mA(Max.)

Output mode

NPN open collector

PNP open collector

Rating

Sink current 100mA(30VDC) Max.

Source current 100mA(30VDC) Max.

Oparating mode

Light-On/Dark-On selectable	L : Light-On
	D : Dark-On

Response time

500µsec(Max.)

Hysteresis

10%(Max.)

Light source

Red LED Wave length : 660nm

LED indicator

OPL : Operation(Red) , STB : Stable(Green)

Sensitivity adj.

SENS : Built-in Potentiometer

Short protection

Built-in

Connection

Flying lead

Connector *

Flying lead

Connector *

cable

F3.5 , 2m

3P , 2.5m(option)

F3.5 , 2m

3P , 2.5m(option)

0.2sq×3Wire

Weight(Max.)

40g

65g

40g

65g

Accessories

1pc. Screwdriver for adjustment 1pc. Bracket for DIN rail(35mm width)

*: Need to order receptacle connector # F2-C3
