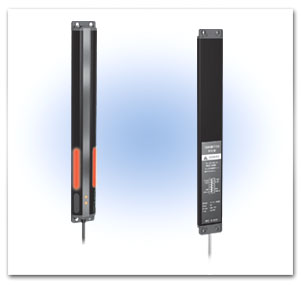

TAKEX Sensor : Light Curtain Sensor SSP-T200 series |
 |
 |
| |
|
|
|
Synchronization line is unnecessary. |
|
|
Robust metal enclosure and yet super slim type of slightly 13mm |
|
|
2 groups of eye-friendly and large-sized job indicators |
|
|
Fault indicator |
|
|
Lighting operation is selectable |
|
|
Common use for NPN/PNP |
|
NPN or PNP can be changed by a switch inside of the sensor unit, which contributes to
reduction of product inventory. |
|
| |
|
|
|
|
|
 |
Model No.
|
Set model
|
SSP-T205
|
SSP-T210
|
SSP-T213
|
SSP-T216
|
Transmitter
|
SSP-TL205
|
SSP-TL210
|
SSP-TL213
|
SSP-TL216
|
Receiver
|
SSP-TR205
|
SSP-TR210
|
SSP-TR213
|
SSP-TR216
|
Detection |
|
Range |
|
Detection object |
ø35 mm (Min.)Opaque object
|
No. of optical axis |
|
|
|
|
Detection width |
|
|
|
|
Optical axis pitch |
|
Power supply |
12 to 24VDC ±10 %, Ripple 10 % (Max.)
|
Current consumption(Max) |
|
|
|
|
Output mode |
NPN / PNP output selectableRating : Current 50mA (30VDC)Max. Residual voltage2V or less |
Operation mode |
Light-on/Dark-on selectable
|
Job indicator input |
Non-contact or contact in put
|
Response
time |
Standard |
Light_on: 35 ms |
Light_on: 68 ms |
Light_on: 70 ms |
Light_on: 94 ms |
Dark_on: 25ms |
Dark_on: 42ms |
Dark_on: 42ms |
Dark_on: 58ms |
Interference
protection |
Light_on: 45 ms |
Light_on: 84 ms |
Light_on: 88 ms |
Light_on: 116 ms |
Dark_on: 28ms |
Dark_on: 52ms |
Dark_on: 54ms |
Dark_on: 72ms |
Light source |
Infrared LED, Wave-length 880nm
|
Indicator |
Transmitter |
Power indicator (Green LED) / Job indicator (Green LED)
|
Receiver |
Stability indicator (Green LED)/ Dark indicator(Orange LED)Unstability indicator (Green LED)/ Job indicator(Green LED) |
Job indicator |
Lights/Flickering selectable / Lighting speed switch (Fast/Slow)
|
Short circuit protection |
|
Interference protection |
|
Material |
Enclosure: Aluminum,Lens : Polycarbonate,End plate: Resin
|
Wiring |
Flying lead(Outer dia.F4.1) 2 m length
Transmitter:0.2mm2 × 3 cores(Gray)
Receiver :0.2mm2 × 4 cores(Black) |
Weight
(Max.) |
Transmitter |
|
|
|
|
Receiver |
|
|
|
|
Incidental function |
Automatic sensitivity correction function
|
|
 |
Ambient light |
10,000 lx (Max.) |
Operating temperature |
10 to 55°C (Storage: 25 to 70°C) |
Operating humidity |
35 to 85 %RH |
Enclosure protection |
IP 62 |
Vibration resistance |
10Hz to 55Hz, 1.5mm Amplitude,2 hours, X,Y and Z directions |
Shock resistance |
500 m/s 3 times X,Y and Z directions |
Dielectric strength |
1,000VAC for 1 minute |
Insulation resistance |
Min.20 MΩ (at 500VDC) |
|
