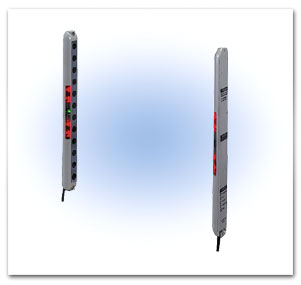

TAKEX SENSOR - ESN Series

	Low cost Light Curtain Sensor



	Slim type only 13mm thick



	Anti Mutual interference function

Models

ESN-T8(PN)

ESN-T12(PN)

ESN-T16(PN)

ESN-T20(PN)

Trns.

ESN-TL8

ESN-TL12

ESN-TL16

ESN-TL20

Rcvr.

ESN-TR8(PN)

ESN-TR12(PN)

ESN-TR16(PN)

ESN-TR20(PN)

Detection

Throughbeam

Range

5m(Max.)

Detecting object

ø30mm(Max.)Opaque object

Optical axis pitch

20mm

No. of optical axis

Detecting width

140mm

220mm

300mm

380mm

Power supply

12-24VDC ±10%, Ripple 10%(Max.)

Current consumption

100mA(Max.)

110mA(Max.)

120mA(Max.)

130mA(Max.)

Output mode

NPN output:	Open collector
Rating:	Sink current 100mA, DC30V Max.
PNP output:	Open collector
Rating:	Source current 100mA, DC30V Max.

Operating mode

All light axis Light-On(One light axis obstructed: Output transistor OFF)

Response time

7ms(Max.)

Light source

Infrared LED(850nm)

LED indicator

Trns.: Power Green LED, Operation Red LED
Rcvr.: Stability Green LED, Operation Red LED

Case material

Case: ABS, Indication window: Acrylic

Connection

cable

Trns.: Gray color , Rcvr.: Black color each 3m length

0.2sq x 5 core, Outer dia ø4.3mm

Weight (Max.)

160g

180g

200g

220g
