NISSEI GEAR| NISSEI Gear motor| NISSEI GTR

NISSEI Gear, NISSEI Gear Motor, Nissei GTR is famaous brand for Gear Motor. NISSEI GEAR MOTOR provide such as Servomotor High precision Reducer, Nissei Gear head, Nissei GTR Gear motor, Nissei Gear GTR - F3 series, Nissei GTR - AGC_AFC series, Nissei GTR precision reducer, Nissei Bevel Gear box - Kompass series, Nissei GTR Index Gearmotor, Nissei GTR -parallel shaft (GTR-L series), Nissei Invertor, Nissei Servomotor Reducer. -www.tjsolution.com

NISSEI Gear motor - All Nissei GTR Series lineup

Nissei Gear; GTR Gearmotor (6W to 40W) -www.tjsolution.com

Parallel shaft(GTR-L)

Motor capacity/ 6W to 40W Reduction ratio/ 1/3 to 1/360



Nissei Gear; GTR Gearmotors (15W to 90W)

	Parallel shaft(G)	Motor capacity/ 15W to 90W Reduction ratio/ 1/5 to 1/1800
	Right Angle shaft(H)	Motor capacity/ 15W to 90W Reduction ratio/ 1/10 to 1/1800
	Concentric hollow/solid shaft(F2)	Motor capacity/ 15W to 90W Reduction ratio/ 1/10 to 1/240
	Parallel shaft(GT)	Motor capacity/ 15W to 60W Reduction ratio/ 1/5 to 1/200



Nissei GTR; Gearmotors (50W to 2.2kW)

	Parallel shaft(G3)	Motor capacity / 0.1kW to 2.2kW Reduction ratio/ 1/5 to 1/1200
	Right Angle shaft(H2)	Motor capacity / 0.1kW to 2.2kW Reduction ratio 1/5 to 1/1500
	Hollow/solid shaft(F)	Motor capacity / 50W to 2.2kW Reduction ratio/ 1/5 to 1/1800
	Concentric hollow/solid shaft(F3)	Motor capacity / 0.1kW to 2.2kW Reduction ratio/ 1/5 to 1/1500



Nissei Gear; GTR Inverters (Bundled with Gearmotors)

Inverters

Motor capacity/ 0.1kW to 2.2kW



Nissei Gear; GTR Index Gearmotors (GT-STEP)

Parallel shaft

Motor capacity/ 25W to 0.2kW No. of stops: 4 to 12 Cycle time (S): 1 to 24



Nissei GTR; Bevel Gearboxes (KOMPASS)

Nissei K / KN type

Output shaft diameter: 4 to 40 Reduction ratio/ 1/1 to 1/2



Nissei Gear; GTR Servomotor Reducers

	Precision low-backlash specification Parallel shaft/Right Angle shaft/Hollow/solid shaft/ Concentric hollow/solid shaft	Motor capacity/ 100W to 2000W Reduction ratio/ 1/5 to 1/240
	Precision 1 arc-min/3 arc-min specification Concentric hollow/solid shaft	Motor capacity/ 100W to 2000W Reduction ratio/ 1/10 to 1/120



Nissei GTR; Servomotor Small High Precision Reducer Parallel Shaft/Right Angle Shaft

	Parallel shaft(AGC)	Motor capacity/ 100W to 750W Reduction ratio/ 1/3 to 1/30
	Right Angle Shaft(AFC)	Motor capacity/ 100W to 750W Reduction ratio/ 1/3 to 1/60

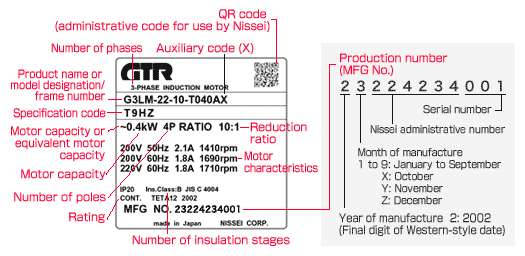

How to read name plate of NISSEI Gear GTR - Gearmotor

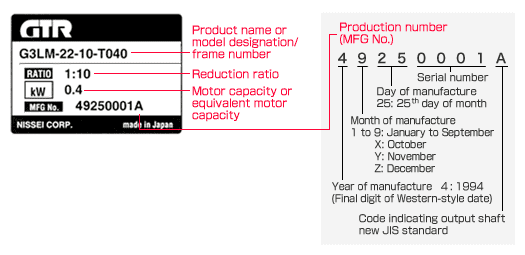

ปี 1994 - 2002

ปี 2002 - ปัจจุบัน



More information about Nissei Gear motor ,please contact our sale engineer or visit website NISSEI GTR
