LASER DIAMETER MEASUREMENT SYSTEM |
|
|---|---|
LDM-PC EX |
|
| FORM | Meet the following requirement. |
| PC/OS to be used. | IBM PC compatible (DOS/V machine): CD-ROM should be able to be used. |
Microsoft Windows98、Me、2000(sp4 or more)、Xp |
|
| Corresponding Model | Connected to TAKIKAWA's LASER DIAMETER LDM-110、110EX、210、210C、1000、1000EX |
| Communication rate | Difference depending on the model. An initial value is 9600bps. |
| DataBit Length | ８bits |
| StopBit Length | １bit |
| ParityBit | None |
| Function | Measurement Value Display,Peak value display、Measurement value state display, Data writing , Graph Drawing and printing function. |
* In Windows 98, Windows-Me, Windows2000, and Windows-XP, the company name and the product name
that has been described to Microsoft Corporation and other this papers are the registered trademarks
or trademarks of each company.
* The specification is a previous notice and might change.
(Screen display example)

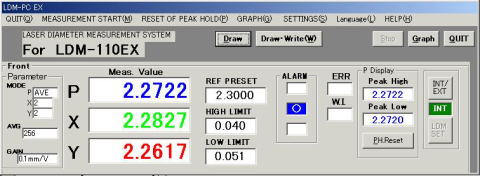

Example of screen under measurement when LDM-110EX is used

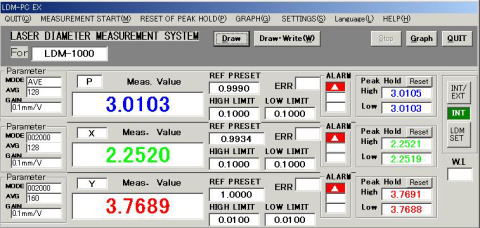

Example of screen under measurement when LDM-1000 is used
(Become a screen similar as for LDM-1000EX. )

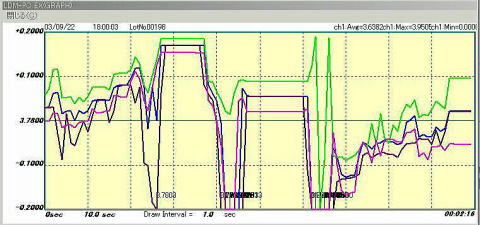

Example of screen of making it draw to simultaneous 3 channels in graph
Because it is this color as for the channel display color and the graph line
color, the confirmation is easy.
Copyright 2012© T.J. Solution Co.,Ltd.
LASER DIAMETER MEASUREMENT SYSTEM ( LDM-PC EX )

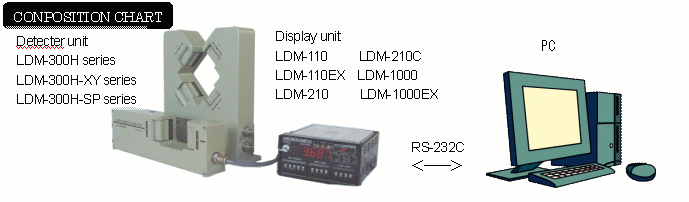

It is application software from Takikawa Engineering to take the result measured with the LASER DIAMETER made of our company from the display part into PC by serial communications (RS-232C), and to file the graph print and the measurement result.
 |
|---|
- Software for Laser micrometer |
 |
