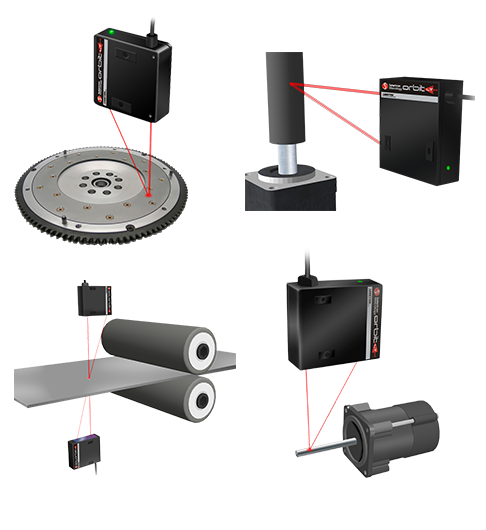

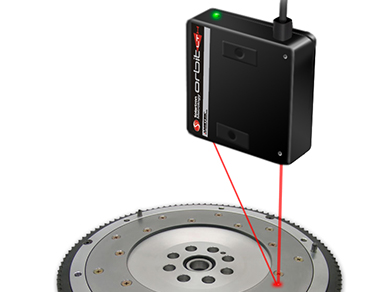

Solartron Metrology, the world leader in linear measurement innovation, has now added another high performance sensor to it's line-up. Orbit® LTH is a Laser Triangulation unit for higher precision measurements, with 0.02% F.S. reading over 2 or 10mm measurement ranges. With the 2mm stroke, that means accuracy up to +/- 0.4 μm!
Solartron Orbit® LTH - Specification
Performance Specification LTH laser
COPYRIGHT 2009 T.J.SOLUTION CO.,LTD.
 |
|---|
 |
| LTHD/ 25/2/B |
LTHD/ 50/10/B |
LTHD/ 50/20/B |
LTHD/ 120/20/B |
LTHD/ 120/40/B |
LTHD/ 200/100/B |
LTHD/ 300/200/B |
|
|---|---|---|---|---|---|---|---|
| Range (mm) | 2 | 10 | 20 | 20 | 40 | 100 | 200 |
| Offset (mm) Note 1 | 25 | 50 | 50 | 120 | 120 | 200 | 300 |
| Spot Size (Diameter µm) | 30 | 36 | 36 | 100 | 100 | 100 | 130 |
| Laser Angle (degrees) | 45 | 30 | 30 | 20 | 20 | 12 | 8 |
| Linearity (±% FSO) (Note 2) | |||||||
| Best (±% FSO) | 0.01 | 0.02 | 0.025 | 0.025 | 0.03 | 0.03 | 0.03 |
| Typical (±% FSO) | 0.02 | 0.04 | 0.045 | 0.06 | 0.05 | 0.04 | 0.04 |
| Best (+µm) | 0.2 | 2 | 5 | 5 | 12 | 30 | 60 |
| Typical (+µm) | 0.4 | 4 | 9 | 12 | 20 | 40 | 80 |
| Repeatability (μm) (Note 3) | |||||||
| Best | 0.1 | 0.2 | 0.4 | 0.5 | 1.0 | 3.0 | 7.0 |
| Typical | 0.2 | 0.4 | 0.8 | 1.0 | 2.0 | 6.0 | 15.0 |
| Resolution (μm) | |||||||
| (Note 4) | 0.0076 | 0.0381 | 0.0763 | 0.0763 | 0.1526 | 0.3816 | 0.7629 |
| (Note 5) | 0.02 | 0.5 | 0.23 | 0.23 | 0.80 | 2.00 | 4.00 |
| Laser | |||||||
| Modes (Note 7) | Diffuse or Specular | Diffuse only | |||||
| Weight Head only (g) | 203 | 460 | |||||
| Power mW / Class (IEC 60825) | <5 / 3R | ||||||
| Wavelength nm | 670 | ||||||
| Performance | |||||||
| Max Sampling Frequency (kHz) | 40.00 | ||||||
| Orbit® Data Rate (Readings/sec) | 3906 | ||||||
| Sampling Cycles | 256/512 μS or 1/2/4/8/16/32/64 ms (Selectable) | ||||||
| Working Bandwidth Hz (Note 6) | 1300, 650, 325, 163, 81, 40, 20, 10 , 5 | ||||||
| Operating Temperature °C | 0 to +40 | ||||||
| Temperature Coefficient | ±0.05% of FSO/°C | ||||||
| Humidity | 10 to 95% non condensing | ||||||
| Emissions/Immunity | EN61000-6-3 / EN61000-6-2 | ||||||
| Power Orbit® 3 | 5±0.25 VDC @ 0.09A and 24±2.5 VDC @ 0.06A typical | ||||||
| Power Orbit ACS | 18-24 VDC @ 0.13A typical | ||||||
| Interfaces | |||||||
| Orbit® 3 | Interfaces to the Orbit®3 network via the Orbit Support Pack for Windows (for Microsoft .Net Framework), USB, Ethernet and Serial Interface modules available |
||||||
| Orbit® ACS | Integral Screen and Keypad, MODBUS or Serial Interfaces | ||||||
