SUBMERSED PUMP

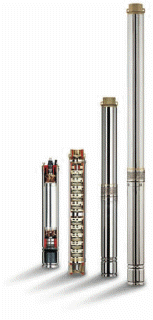

Electric submersible pumps for 4" (100 mm) wells
Application
  • To pump water from wells;
  • To pressurize civil, agricultural, industrial and fire-fighting plants;
  • Irrigation in general.

Flow
from 10 to 400 l/min
Head
from 2 to 256 m
Power
from 0,5 to 10 HP - from 0,37 to 7,5 KW
Electric submersible pumps UNISOM for 4" (100 mm) wells
A cheap, handy and compact solution for domestic water supply.

Application
  • To pump water from wells;
  • To pressurize civil plants;
  • Small irrigation.

Flow
from 15 to 70 l/min
Head
from 14 to 147 m
Power
from 0,75 to 2 HP - from 0,55 to 1,5 KW

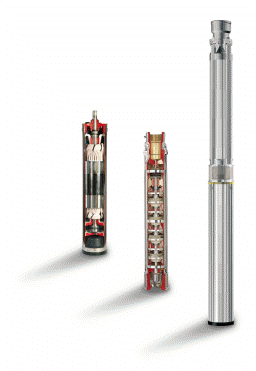

Electric submersible pumps TURBOSOM for 6" (150 mm) wells
Application
  • To pump clean water from wells;
  • To pressurize civil plants;
  • Small irrigation.

Flow
from 6 to 40 l/min
Head
from 11 to 84 m
Power
from 0,75 to 1 HP - from 0,55 to 0,75 KW
Electric submersible pumps SRM - SRT for 6" (150 mm) wells
Application
  • To pump water from collecting troughs, tanks and wells;
  • To pressurize civil, agricultural, industrial and fire-fighting plants;
  • Irrigation in general.

Flow
from 6 to 700 l/min
Head
from 0,5 to 111 m
Power
from 0,75 to 5,5 HP - from 0,55 to 4 KW
Electric submersible pumps for 6" (150 mm) wells
Application
  • To pump water from wells;
  • To pressurize civil, agricultural, industrial and fire-fighting plants;
  • Irrigation in general.

Flow
from 90 to 1000 l/min
Head
from 5 to 383 m
Power
from 2 to 40 HP - from 1,5 to 30 KW

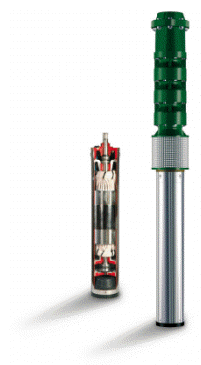

Electric submersible pumps for 8" - 12" (200 - 300 mm) wells
Application
  • To pump water from wells;
  • To pressurize civil, agricultural, industrial and fire-fighting plants;
  • Irrigation in general.

Flow
from 500 to 5500 l/min
Head
from 5,5 to 209 m
Power
from 7,5 to 75 HP - from 5,5 to 55 KW
