M System supply high-quality electronic for M System Transmitter,Isolate&Convertor, Signal conditioners, limit alarms, power transducers, remote I/O devices, lightning surge protectors and other unique process control equipment, which are needed to "INTERFACE" in the field of process and factory automation. - M-SYSTEM (JAPAN) !!

M-System product lineup:-

1. M-System: Isolate&Convertor (Signal conditioners)

The widest variety of signal conditioning options available to the end-user. From two-wire hockeypucks to AC and DC powered DIN rail instruments, these devices isolate and interface field sensors such as AC/DC volts, 4-20 mA, RTDs, thermocouples, frequency, potentiometer, etc. to PLC, DCS or PC-based systems. Additionally, M-System offers the broadest line of signal splitters available.

- Mini-M Series (Compact Signal Conditioners) ; M-system model: M2XU, M2XUM, M2XV2, M2XF2

- Mini-MW Series (Signal Splitters) ; M-system model: M2VS, W2VS, M2VF, M2VF2, W2VF -www.tjsolution.com

- M5 / B5 / W5 Series (Low Cost, Low Profile, Compact Modules) ; M-system model: M5VS, M5MV, M5VF, W5VS, W5FV, B5VS

- M3L / M3S / B3 Series (Super-Slim Isolator) ; M-system model: M3LU, M3LV, M3SXV, M3SVS, M3SWVS, M3SYV, B3FV, B3VS/1, B3VS/2

- M6 Series (Ultra-Slim Isolator) ; M-system model: M6SXV, M6NXV, M6DXV, M6SVS, M6NVS, M6DVS, M6SWVS, M6NWVS, M6DWVS, M6SYV, M6NYV, M6DYV

- Input Loop Powered Isolators ; M-system model: M2SN-1, M2SN-2, B5SN



2. M-System: Limit Alarms

..... Analog Alarm ; Fail-safe and non-failsafe alarms are available from DIN-rail mount devices to front-of-panel displays offering up to four contact relays. These alarms feature digital setpoint controls, delay timers, and universal inputs. M-System alarm series are used from simple on/off pump control to back-up alarm systems in the event of a PLC/DCS failure. M-system analog alarm model: ASD1, KSED, M2SED, M2AS, M2AS1, M2AVS, AL Series, AE Series, M-PAC Series, AYDV.

.....Programmable Alarm ; M-system Programmable Alarm model: M7EASV, M7EASDY, AS4V, KS2V, MSEF, AS4T, AS4R, KS2TR, AS4M, AS4CT, AS4LC.-www.tjsolution.com



3. M-System: Power measurement

.....Power Transducer ; When it comes to measuring power, M-System offers a full line of power measuring transducers. These products report AC volts, AC current, power factor, watts, vars and phase angles measurements. From 1A AC to 3000A AC, M-System has a solution for you. M-system Power measurement model: LT Series(Power Transducers), 53U(Multi Power Monitor with Modbus), LSMT3(Multi Power Transducer), LSMT2(Multi Power Transducer with Modbus), CTS(High AC Current Transmitter with Integral Probe).



4. M-System: Paperless Recorder

M-System have various type for paperless recorder such as PC Recorder series, MSRPAC PC Recorder software package, MSRPro High Performance PC Recorder (Client/Sever System) and 73VR Series Paperless Recorder module.

......PC Recorder series

Log, Trend, Analyze and Profile Process Signals with Your PC Data Collection by PC Recorder Software RS-485/RS-232C Communication Port Modbus RTU Network High Speed Sampling 50 ms / 8 ch External Trigger Input Remote Limit Alarming



......MSRPAC PC Recorder software package

M-System : MSR128LV / MSR128LS - PC Recorder-Light Ideal for basic logging and trending purposes Maximum sampling rate of 50 ms for8 channels, 500 ms to 1 minute for the total of 120 channels MSR128LV for VGA (Screen area: 640 x 480 pixels) MSR128LS for SVGA (Screen area: 800 x 600 pixels)



......MSRPro High Performance PC Recorder (Client/Sever System)

	M-System: MSRPro High Performance PC Recorder
	Max. 2048 points High speed 100 msec. mode up to 256 points Active trend view to compare in real time past and present data overlapped on each other Arithmetic and logic functions, including the ones performed between channels Alarm history and data search functions

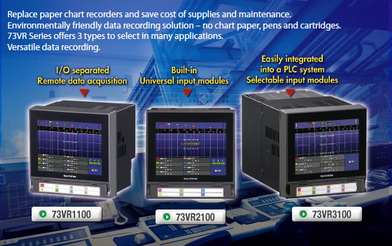

......73VR Series Paperless Recorder module

Touch panel operation. Selectable number of pens to display. 5.5-inch TFT color display with backlight. In addition to the conventional white chart color, blue-to-black gradating background color is selectable. IP 65 front cover.



5. M-System: Gateway & Remote I/O

M-System has recently been developing network products that meet the end-user's need for Profibus, Modbus, Ethernet and DeviceNet I/O devices. Working with open-architecture networks, these products easily communicate to today's most popular HMI software packages and DCS/PLCs.M-System’s Remote I/O is designed to support DCS/PLC systems by expanding their I/O flexibility and capabilities in addition to providing all full channel-to-channel isolation. The Remote I/O communicates directly to the PLC and DCS via industry standard open-protocol networks.

M-System’s Remote I/O also can be used as stand-alone distributed I/O communicating with popular HMI software such as Citect, Intellution and Wonderware. The Remote I/O can be locatedremotely in the field, or within an instrumentation cabinet such as test stands.

The flexibility and scalability of M-System’s Remote I/O supports future system upgrades withfull isolation between power-communication-I/O and between analog channels. Economical non-isolated analog modules are also selectable. Isolated analog I/O modules provide high-performance signal conversion/conditioning and complete three-way plus channel-to-channelisolation. This ensures you a highly dependable system.

Applications include: signal concentrator, data collection in flow and levelmonitoring, injection molding monitoring and control, test stands and prototyping, glass furnace temperature control, assembly line discrete ON/OFF, paint booth environment reporting, pharmaceutical processes.

.......M-System: Remote I/O Series Line up





6. M-System: Lightning Surge Protection

M-System lightning surge protection devices are designed for the rugged industrial environment. Products range from the standard factory floor signals such as 4-20mA, thermocouple, RTD and strain gauge to filtering and protecting the AC Power in instrument panels.

Every year lightning destroys many millions of dollars of sensitive electronic equipment. Millions more are lost through extended down time and the loss of production or mission-critical information. That's why companies around the world depend on in-line M-RESTER Lightning Surge Protectors to protect both signal and power wires. M-System offers superior protection and selection across a side range of applications.We have wide range type; 4-20 mA&Pulse, Sensor, Transmission, Power and Life monitor(surge counting).

The nuts and bolts of the world's best Lightning Surge Protectors

• Protects sensor, signal and power lines.

• Superior protection and selection across a wide range of applications.

• M-RESTERs can be removed and tested without disconnecting wires.

• Base socket connects input/output signals when an element is removed.

• CE marking and UL approval for selected models.

• Lightweight, easy-to-handle, plug-in construction -www.tjsolution.com



7. M-System: Panel Indicator

.......Digital Panel meter model: 47L Series, 47D Series, 6DV / 6DV-B, 43 Series

.......BarGraph Indicator model: 48NV, 48NAx Series, 48NDx Series, 48SV, 49AV2
